概览

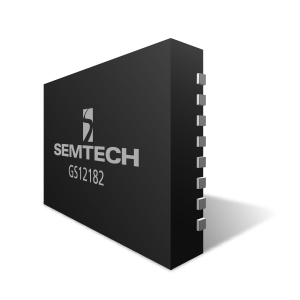

The GS12182 is a low-power, multi-rate, re-timing cable driver supporting rates up to 12G UHD-SDI, inclusive of 10GbE. It is designed to receive 100Ω differential input signals, automatically recover the embedded clock from the digital video signal and re-time the incoming data, and transmit the re-timed signal over 75Ω coaxial cables. Each of the 100Ω trace inputs support up to 17dB of insertion loss.
集成的眼图监控器可提供对后均衡输入信号的无干扰任务模式分析。 256x128 分辨率扫描矩阵可提供准确的信号分析，加速原型生成，实现场分析。 内置宏可实现定制截面分析以及快速横向和纵向眼张开度测量。
扫描和可配置空间及时间阈值之间高相位一致时，可在场中部署算法，用于分析长期信号质量变化（浴盘图），从而缩短系统安装设施间歇误差的故障排除时间。 两个电缆驱动器具有可高度配置的预加重和摆幅控制，用于补偿远距离跟踪和控制器丢失。 此外，还为每个电缆驱动器输出提供自动和用户可选的输出压摆率控制。
GS12182 与 GS12181 和 GS12281 单输入 12G UHD-SDI 多速率重定时电缆驱动器、GS12081 12G UHD-SDI 多速率电缆驱动器，以及 GS3281 3G SDI 多速率重定时电缆驱动器具有引脚兼容性。
订购代码
- GS12182-INE3：无铅，符合 RoHS 标准，490 颗/盘
- GS12182-INTE3：无铅，符合 RoHS 标准，250 颗/卷
- GS12182-INTE3Z：无铅，符合 RoHS 标准，2500 颗/卷
PB Free/ROHS

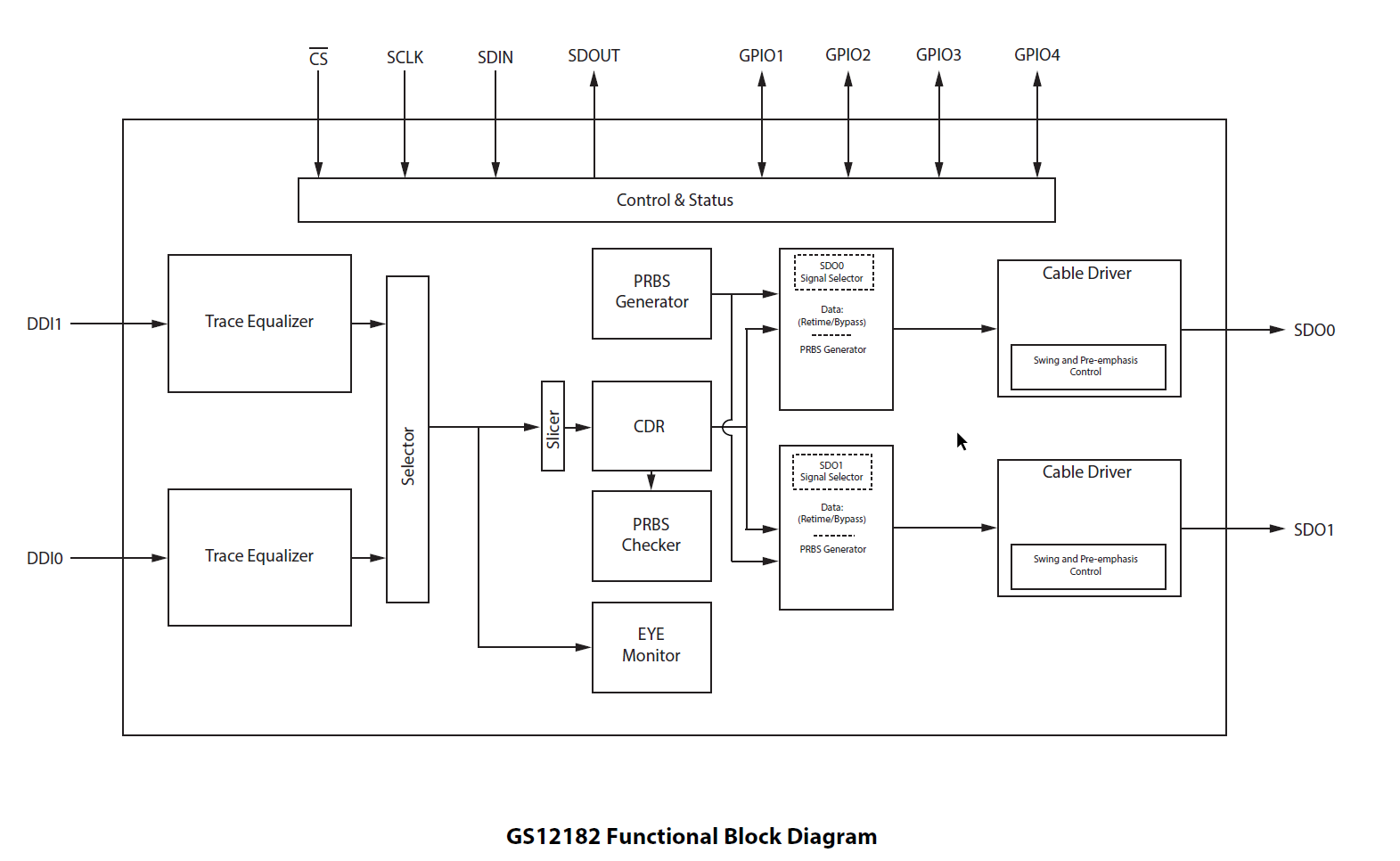

Learn More →功能
- 两个输入/输出重定时电缆驱动器，配备 2:1 输入选择器和芯片级终端
- 输入/输出符合 SMPTE ST 2082-1、ST 2081-1、ST 424、ST 292-1 和 ST 259
- 从 1 Mb/s 到 11.88 Gb/s 的多标准运行
- 除了标准 SMPTE 速率，本设备还支持 270 Mb/s 的 DVB-ASI，125 Mb/s 的 MADI 和 10GbE 重定时
- 3D 输入信号眼图监视器
- PRBS 生成器和检验器
- 电缆驱动器功能：
- 广泛的振幅控制
- 预加重以补偿设备输出和 BNC 之间严重的插入损耗
- 自动/手动输出压摆率控制
- 手动/自动重定时器旁路
- 信号丢失时手动或自动静音或禁用
- 集成式 75 欧姆单端输出终端
- 迹线均衡器功能：
- 集成式 100 欧姆差分输入终端
- Automatic power down on loss of signal
- 迹线均衡以补偿 11.88 Gb/s 速率时最多 20 英寸的 FR4
- Automatic input offset compensation
- CDR 功能：
- 手动或自动速率模式
- 宽环路带宽控制
- 以下列数据速率进行重定时：125Mb/s、270Mb/s、1.485Gb/s、2.97Gb/s、5.94Gb/s、11.88Gb/s 和 10.3125 Gb/s。其中包括 f/1.001 速率。
其他功能
- Single 1.8V power supply for analog and digital core
- 2.5 V 或 3.3 V 电缆驱动器输出电源
- GSPI 串行控制和监控接口
- 四个可配置的 GPIO 引脚，可用于控制或状态监控
- 工作温度范围宽：-40℃ 至 +85℃
- 小型 6 mm x 4 mm 40 引脚 QFN 封装
- 与 GS12181、GS12281、GS12081 和 GS3281 的引脚兼容
- 封装无铅/无卤素/符合 RoHS 和 WEEE 标准
| 文档 | Release Date | Type |  |
|---|---|---|---|
| GS12182 数据表 | 2019-07-03 | | |
| GS12182 初始化加载程序 | 2020-06-06 | | |
| Recommended Semtech Video Product Evaluation and Reference Design Boards | 2023-04-03 | | |
| Recommended Semtech Video Product Evaluation and Reference Design Boards | 2024-09-21 | | |
| Recommended Semtech Video Product Evaluation and Reference Design Boards | 2025-02-25 | | |
| GS12182 可靠性认证报告 | 2019-07-03 | | |
| EB-UHD-SDI 评估板套件用户指南 | 2019-12-17 | | |
| GS12XXX 配置文件版本说明 | 2021-10-28 | TXT | |
| 文档 | Release Date | Type | |
|---|---|---|---|
| EB-UHD-SDI 评估板套件软件 | 2020-05-12 | ZIP | |
| GS12XXX 配置文件 | 2019-05-21 | TXT | |
应用
用于支持 UHDTV1、UHDTV2、4D D-Cinema 和 3D HFR 以及 HDR 制作图像格式的下一代 12G UHD-SDI 基础设施。
典型应用：摄像机、切换器、分配放大器和路由器。
