概览
Please use the GS12341 for new designs.

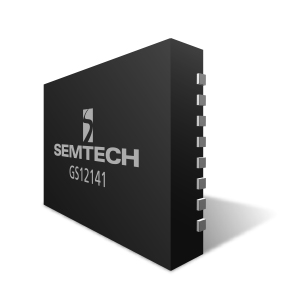

The GS12141 is a low-power, multi-rate, serial digital retiming cable equalizer supporting 12G UHD-SDI. It is designed to equalize and restore signals received over 75Ω coaxial cable, automatically recover the embedded clock from the digital video signal and re-time the incoming data.
订购代码
- GS12141-INE3: Lead-Free, RoHS Compliant, Tray-490 Pieces
- GS12141-INTE3：无铅，符合 RoHS 标准，250 颗/卷
- GS12141-INTE3Z: Lead-Free, RoHS Compliant, Tape and Reel-2500 Pieces
PB Free/ROHS
Learn More →功能
- 从 1 Mb/s 到 11.88 Gb/s 的多标准运行
- Automatic cable equalization:
- 输入符合 SMPTE ST 2082-1、ST 2081-1、ST 424、ST 292-1 和 ST 259
- Support for DVB-ASI at 270Mb/s and MADI at 125Mb/s
- 针对 11.88Gb/s 速率进行了性能优化。Belden 1694A 电缆的典型均衡电缆长度：
- 70m at 12Gb/s
- 90m at 6Gb/s
- 速率为 3Gb/s 时长度为 180m
- 速率为 1.5Gb/s 时长度为 240m
- 速率为 270Mb/s 时长度为 300m
- 低功耗运行：约 320mW
- Automatic power down on loss of signal
- 自动电缆长度检测
- Single 1.8V power supply operation
- GSPI 串行控制和监控接口
- 双差分输出支持直流耦合
- 1.2V 至 2.5V CML 逻辑
- 可以禁用第二个输出以节省电耗
- Individually selectable output pre-emphasis to
- 补偿 11.88Gb/s 速率时最多 20 英寸的 FR4
- Cable equalizer bypass
- 低数据速率的手动旁路模式
- 低数据速率的可配置自动旁路
- 可编程的载波检测和抑制阀值调节
- On-chip 100ohm differential output data termination
- 四个可配置的 GPIO 引脚，可用于控制或状态监控
- 工作温度范围宽：-40℃ 至 +85℃
- 小型 6 mm x 4 mm 40 引脚 QFN 封装
- 无铅且符合 RoHS 标准的封装
| 文档 | Release Date | Type |  |
|---|---|---|---|
| GS12141 数据表 | 2019-01-16 | | |
| GS12141 Reliability Qualification Report | 2019-12-17 | | |
| GS12141 IBIS-AMI Model User Guide | 2019-07-03 | | |
应用
- Next Generation 3D / 2D HFR HDTV and 2K D-Cinema, UHDTV1 and 4K D-Cinema end-equipment: Cameras, Monitors, Switchers etc.
- 新一代 3G、6G 和 12G UHD-SDI 基础设施，用于支持 UHDTV2、UHDTV1、4D D-Cinema 、3D HFR 以及 HDR 制作图像格式。
