概览

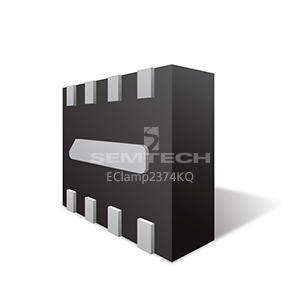

EClamp®2374KQ 是集成 TVS 二极管的低通滤波器阵列。它可以抑制多余的 EMI/RFI 信号，并为汽车级电子设备提供静电放电 (ESD) 防护。
封装
- SLP1713P8 - 1.7 x 1.3 x 0.50 mm, 3,000 pcs, Tape and Reel.
订购代码
- EClamp2374KQTCT - Pb-Free, Halogen Free, RoHS/WEEE compliant.
PB Free/ROHS
Learn More →功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- 瞬变保护符合以下标准：
- IEC 61000-4-2 (ESD) ±15kV (Air), ±8kV (Contact)
- ISO-10605:2023 (ESD) ±30kV (Air), ±30kV (Contact)
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- Qualified to AEC-Q100, Grade 1
- Resistor: 100Ohms ±15% Protection and filtering for four lines
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS Working Voltage: 5V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2374KQ Datasheet | 2018-12-15 | | |
应用
- 汽车彩色 LCD 显示屏
- 汽车信息娱乐系统
- Color LCD Protection
- CCD Camera Lines
