概览

RailClamp® TVS arrays are ultra low capacitance electrostatic discharge (ESD) protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD, cable discharge events (CDE) and electrical fast transients (EFT). The monolithic design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package. Each line has a typical capacitance of 0.3pF to ground and the capacitance of each line is well matched for consistent signal balance. A connection to the TVS is provided for protection of external voltage buses, such as those found in USB applications. They may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). The RClamp0582NQ is qualified to AEC-Q100 Grade1, is supplied in a 6-pin SLP1210N6 package and measures 1.2x1.0x0.58mm.

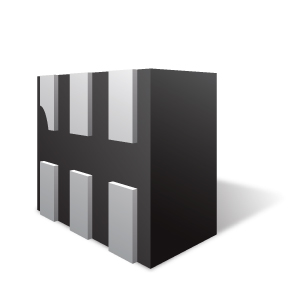

封装

  • DFN 1.2 x 1.0 x 0.58mm 6-Lead

订购代码

  • RClamp0582NQTCT

PB Free/ROHS

Learn More →

功能

  • Transient protection to
    • IEC 61000-4-2 (ESD): ±12kV (contact), ±20kV (air)
    • IEC 61000-4-5 (lighting): 5A (8/20μS)
    • IEC 61000-4-4 (EFT): 40A (5/50nS)
  • Working voltage: 6.5V max
  • Protects two I/O lines and a power line
  • Low capacitance: 0.3pF (Typ)
  • Array of surge rated diodes with internal TVS diode
  • 低 ESD 钳位电压
  • Qualified to AEC-Q100 Grade1
  • 固态硅雪崩技术

应用

  • 汽车 USB
  • MMC/SD port
  • Automobile video port
