概览
RailClamp® TVS 二极管是超低电容器件，可以保护灵敏电子器件免受静电放电 (ESD)、电气快速瞬变 (EFT) 和电气过载 (EOS) 造成的损坏或闩锁效应。它们设计用于汽车应用中的高速端口。这些器件具备电路板保护的理想特性，即响应时间快，工作电压和钳位电压低，无器件退化。
封装

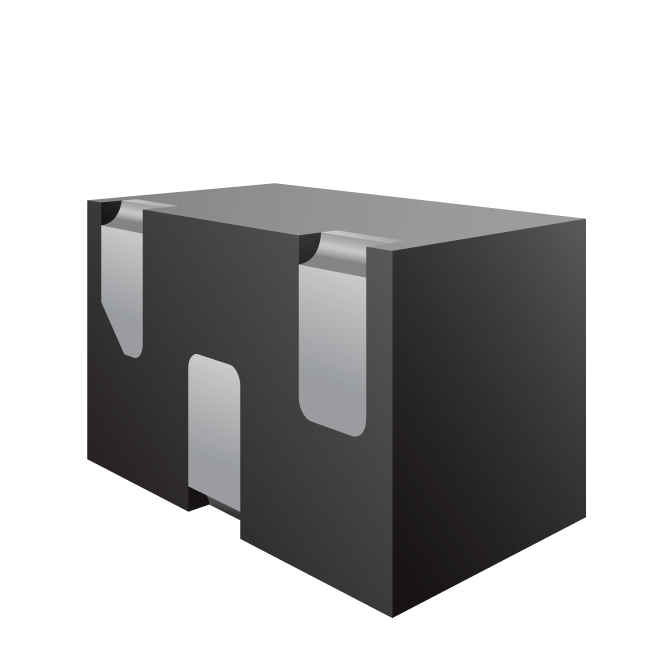

- 封装：DFN 1.0x0.6x0.55mm 3 引脚
PB Free/ROHS
Learn More →功能
- 符合 AEC-Q100（1 级）和 AEC-Q101 认证
- 可焊性侧面封装
- Working voltage: 5V
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- Protects two high-speed data lines
- 占用较小 PCB 空间：0.6mm
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0592PWQ Datasheet | 2025-02-18 | | |
应用
- 汽车应用
- Industrial equipment
- 集成磁性元件/RJ-45 连接器
- 1G/2.5G/5G 以太网
- USB 2.0
