概览
RClamp®10022PWQ is a 2-line Transient Voltage Suppressor designed specifically for ESD protection of 100BASE-T1 and 1000BASE-T1 interfaces in automotive applications. It utilizes silicon avalanche technology for superior ESD and TLP clamping performance. This bidirectional TVS has a trigger voltage >100V and a deep snap-back characteristic for minimizing ESD clamping voltage.
封装

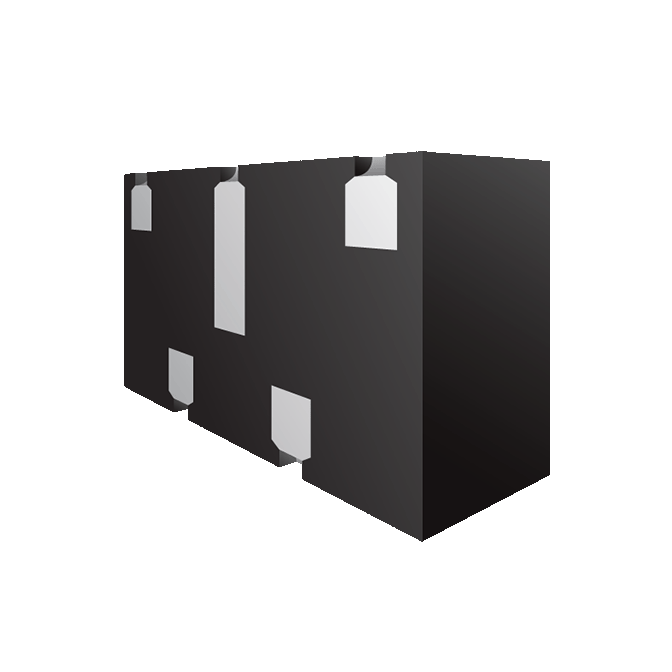

- DFN 2.0 x 1.0 x 0.55 mm 5-Lead
订购代码
- RClamp10022PWQC: Pb-free, Halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
PB Free/ROHS
Learn More →功能
- Open Alliance Compliant
- ESD Per IEC 61000-4-2 ±15kV (Contact), 25kV (Air)
- ESD per ISO 10605 * ±30kV Contact & Air (R =2kΩ, C = 330pF/150pF) * ±15kV Contact (R = 330Ω, C = 150pF)
- 1000 Contact Discharges: ±15kV (Open Alliance)
- Low Capacitance: 0.6pF Maximum
- TVS Trigger Voltage: 100V Minimum
- TVS Working Voltage: 30V
- 封装设计已优化，易于布局
- 可焊性侧面封装
- Qualified to AEC-Q100, Grade 1 and AEC-Q101
- Solid-State Silicon-Avalanche Technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP10022PWQ Datasheet | 2025-02-18 | | |
