概览

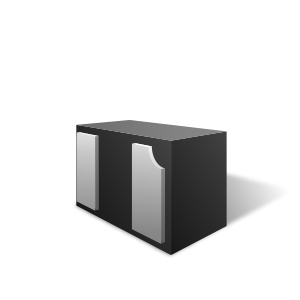

µClamp® 系列 TVS 阵列可以保护灵敏电子器件免受 ESD 造成的损害或闩锁效应。
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±30 kV（空气和接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条 I/O 或电源线路
- 钳位电压低
- Working voltage: 5V
- 小漏电流
- 固态硅雪崩技术
- AEC-Q100 Grade 1 Qualified
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP0511PQ 数据表 | 2018-12-15 | | |
应用
- 蜂窝手机和配件
- Cordless Phones
- Smart Phones
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- MP3 播放器
- 汽车应用
