概览

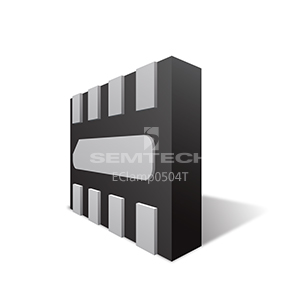

The EClamp®0504T is designed to protect sensitive electronics from damage or latch-up due to ESD. This stateof-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. It has been optimized for protection of digital lines in cellular phones and other portable electronics.
封装
- 8-pin SLP2116P8T
订购代码
- EClamp0504T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±17kV（空气），±12kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Protects four data lines
- TVS working voltage: 5V
- Series Resistor: 1K Ohm
- Capacitance: 15pF (Maximum at VR = 0V)
- Low leakage current (<100nA)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP0504T Datasheet | 2019-06-14 | | |
应用
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 外围设备
- MP3 播放器
