概览

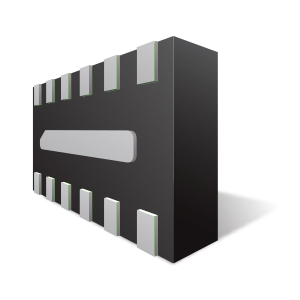

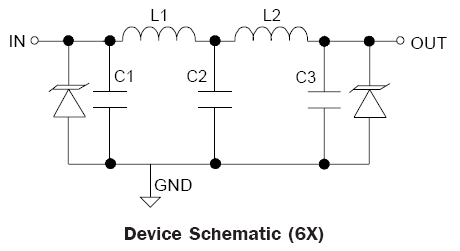

EClamp®2396P 是集成 TVS 二极管的 (L-C) 低通滤波器阵列。它可以抑制多余的 EMI-RFI 信号，并为便携电子设备提供静电放电 (ESD) 保护。
功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- Filter performance: 30dB minimum attenuation 800MHz to 2.7GHz
- TVS working voltage: 5V
- Inductor: 19nH (Typical)
- 电容：12pF（VR = 2.5V 时的典型值）
- Protection and filtering for six lines
- Solid-state technology
- Lead-Free, RoHS and WEEE Compliant
应用
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
