概览
The EClamp®2455P is combination EMI filter and line termination device with integrated TVS diodes for use on SIM Card interfaces on cellular phones and other portable electronics. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics.

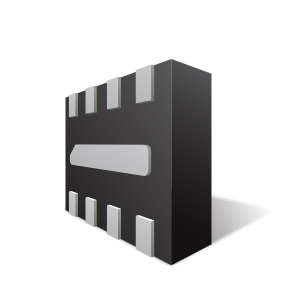

封装

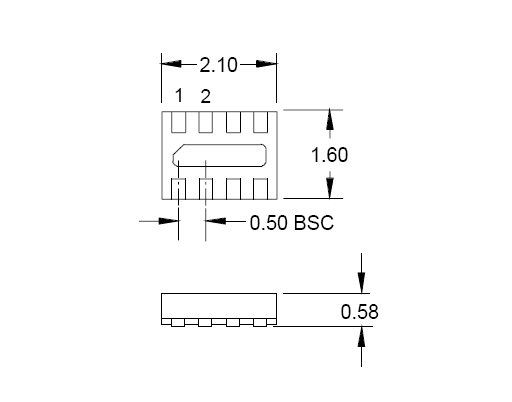

- SLP2116P8
订购代码
- EClamp2455P.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
PB Free/ROHS
Learn More →功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- TVS working voltage: 5V
- Termination Resistors: 100 Ohms & 47 Ohms
- Capacitance: 20pF (Typical at VR = 0V)

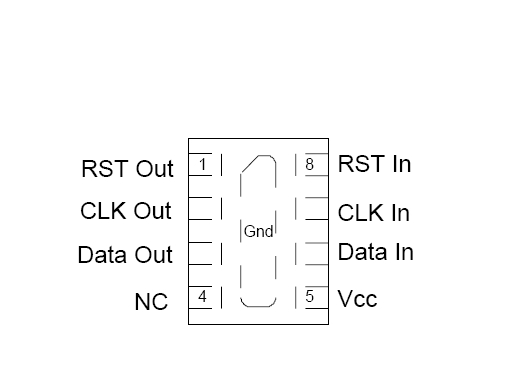

- Protection and filtering for four lines
- Solid-state technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2455P Datasheet | 2018-12-14 | | |
应用
- SIM Card
- Cell Phone
- PDAs and Smartphones
