概览
The EClamp® 2485T is combination EMI filter and line termination device with integrated TVS diodes for use
on SIM Card interfaces that utilize the Single Wire Protocal (SWP) line. This device utilizes solid-state
silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They
have been optimized for protection of SIM interfaces in cellular phones with NFC capability.

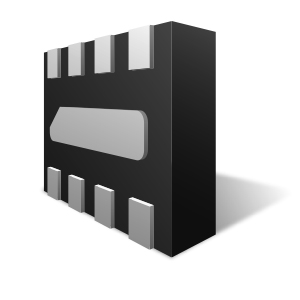

封装
- SLP1713P8T
订购代码
- EClamp2485T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- Integrated TVS diodes and line termination resistors
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±18kV (air), ±12kV (contact)
- TVS working voltage: 5V
- Termination Resistors: 100 Ohms & 47 Ohms
- Low SWP Line Capacitance: 0.9pF max (VR = 0V)
- Protection for five lines
- 低 ESD 钳位电压
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2485T Datasheet | 2018-12-15 | | |
应用
- SIM Card Interface with SWP
- Cell Phones with NFC Capability
- Smartphones
