概览

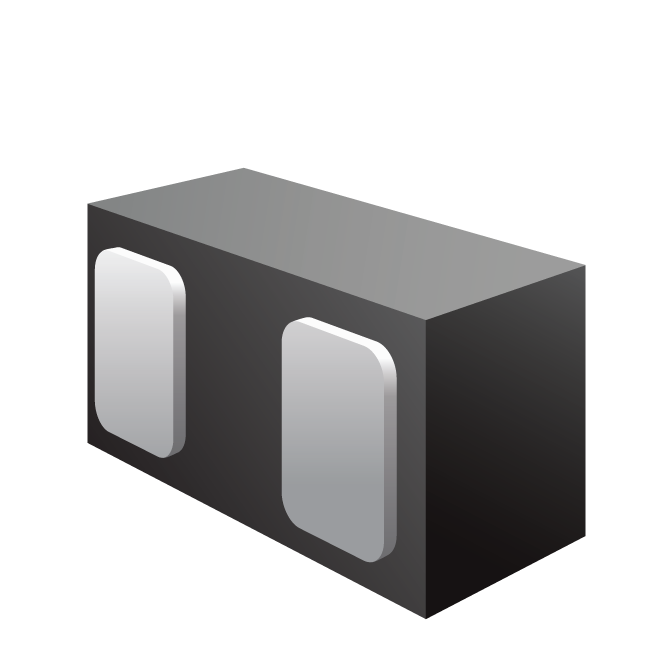

HClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). These state-of-the-art devices utilize solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They have been optimized for ESD and EMI protection of digital lines in cellular phones and other portable electronics.
功能
- High ESD withstand Voltage: +/-17kV (Contact) and +/- 25kV (Air) per IEC 61000-4-2
- Low harmonic distortion compared to standard ESD diodes
- Ultra-small package
- Protects one data line
- 低 ESD 钳位电压
- Working voltage: 5V
- 小漏电流
- Capacitance: 4.5pF (Typical)
- Extremely low dynamic resistance: 0.83 Ohms (Typ)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| HCLAMP5051ZA Datasheet | 2023-09-05 | | |
应用
- Cellular handsets and accessories
- Portable instrumentation
- Audio ports
- MIPI SoundWire
- Keypads and side keys
- Tablet PC
