概览

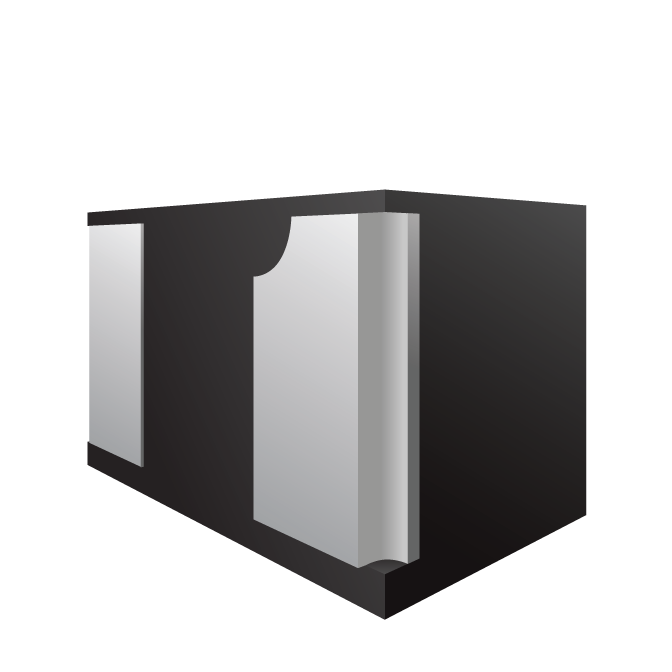

RClamp04041PW TVS diodes are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and electrical overstress (EOS). These devices offer desirable characteristics for board-level protection, including fast response time, low operating and clamping voltage and no device degradation.
功能
- ESD protection for high speed lines to IEC 61000-4-2 (ESD): +/-30kV (contact and air) IEC 61000-4-5 (lightning): 20A (tp = 8/20µs)
- Ultra-small package
- 低 ESD 钳位电压
- Working voltage: 4.0V
- 低电容：最大 0.65pF
- 小漏电流
- Low dynamic resistance: 0.1Ω (typ)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP04041PW Datasheet | 2023-08-19 | | |
应用
- USB 2.0
- MIPI/MDDI
- MHL
- 可穿戴设备
