概览
μClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They features large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage,and no device degradation.
封装

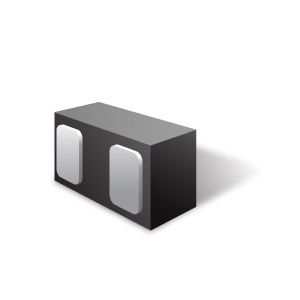

- SLP0603P2X3 package
- Pb-Free, Halogen Free, RoHS/WEEE compliant
- 标称尺寸：0.6 x 0.3 x 0.25 mm
- Packaging: Tape and Reel
订购代码
- μClamp0511Z.TFT
- Qty: 15,000
- 卷带大小：7 英寸
- μClamp0511Z.TNT
- Qty: 10,000
- 卷带大小：7 英寸
PB Free/ROHS
Learn More →功能
- High ESD withstand Voltage: +/-15kV (Air) and +/-8kV (contact) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC61000-4-2 Level 4
- Ultra-small 0201 package
- Protects one data line or power line
- Low leakage current: <10nA (VR=5V)
- Working voltage: +/-5V
- Low dynamic resistance: 0.64Ω (typ)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP0511Z Datasheet | 2018-12-15 | | |
应用
- 蜂窝手机和配件
- Keypads, Side Keys, Audio Ports
- 便携式仪表
- 数字线路
- MP3 播放器
