概览

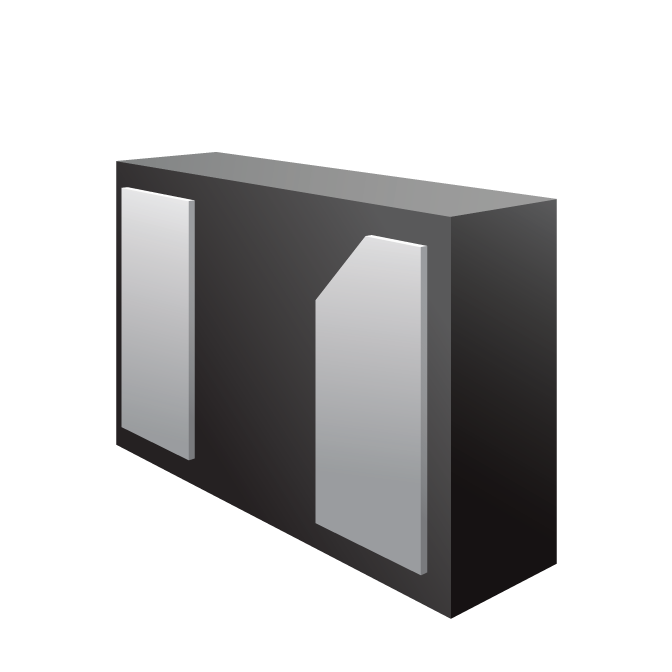

The uClamp1291ZV is a single line, unidirectional transient voltage suppressor (TVS) specifically designed for electrical overstress (EOS) protection of a DC voltage bus operating up to +12V. It features a large cross sectional area junction for conducting high transient current (30A, tp=8/20us), low clamping voltage, and no device degradation. Protection characteristics are further highlighted by high electrostatic discharge (ESD) withstand voltage (+/-30kV per IEC 61000-4-2) and low dynamic resistance.
功能
- High ESD withstand voltage: +/-30kV (Contact) and +/-30kV (Air) per IEC 61000-4-2
- High peak pulse current capability: 30A (tp = 8/20μs)
- Protects one unidirectional line
- 低 ESD 钳位电压
- Working voltage: +12V
- 固态硅雪崩技术
应用
- Cellular handsets and accessories
- Notebooks and tablets
- Vbus
- Battery protection
