概览
μClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to EOS, lightning, CDE, and ESD. They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
µClamp3381P 具备极为出色的保护特性，其特点为高浪涌电流性能 (25 A，tp=8/20 us)、低峰值 ESD 钳位电压和高 ESD 耐压（根据 IEC 61000-4-2，+/-30 kV 触点）。标准动态电阻为 0.025 欧姆，属于业内最佳。每个器件将保护一个以 3.3 伏特运行的数据线或电源线。

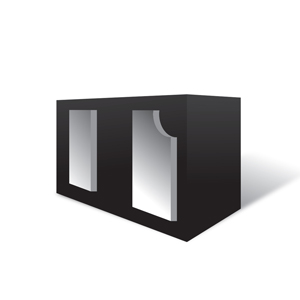

封装
- SGP1006N2：1.0 x 0.6 x 0.5mm
订购代码
- µClamp3381P.TFT：无铅、无卤素且符合 RoHS/WEEE 标准，15,000 颗。
PB Free/ROHS
Learn More →功能
- VBus 和数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5（雷电）25A (8/20µs)
- 保护一条线路
- 低 ESD 钳位电压
- 工作电压：3.3V
- 小漏电流
- 极低动态电阻：0.025 欧姆（典型值）
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| uClamp3381P 数据表 | 2019-05-25 | | |
应用
- 光学模块
- 3.3 V VBus 电源线保护
- 液晶电视
- Tablet PC
- Instrumentation
- CCTV 摄像头
