概览
RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to
high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE
(cable discharge events), and EFT (electrical fast transients).
封装

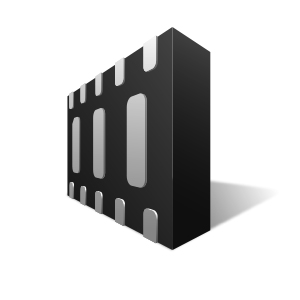

- SLP3020N10 10L
订购代码
- RClamp2574NQ.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5（雷电）40A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two line pairs
- Low capacitance for high-speed interfaces
- 电容随偏压的变化而发生的变化小
- 钳位电压低
- Qualified to AEC-Q100 Grade1
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RClamp2574NQ Datasheet | 2019-03-20 | | |
应用
- 10/100/1000 Ethernet
- 局端设备
- LVDS Interfaces
- MagJacks/集成磁性元件
- 笔记本电脑/台式机/服务器
