概览

The TClamp0602N is a 6V, 2-line low capacitance transient voltage suppressor (TVS) array designed to provide surge and electrostatic discharge (ESD) immunity on high speed data and telecom interfaces. The TClamp family of TVS arrays is specifically designed to protect telecom and industrial data lines from overvoltage transients caused by ESD, cable discharge events (CDE) and lightning surge.

封装

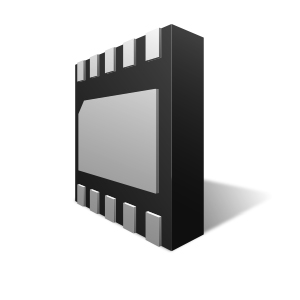

  • SLP2626P10

订购代码

  • TClamp0602N.TCT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel

PB Free/ROHS

Learn More →

功能

  • Transient protection for high-speed data lines to
    • Bellcore 1089 (Intra-Building) 100A (2/10μs)
    • IEC 61000-4-2 (ESD) ±15kV(空气),±8kV(接触)
    • IEC 61000-4-4 (EFT) 40A (5/50ns)
    • IEC 61000-4-5 (Lightning) L5, 95A (8/20μs)
  • Protects two lines in common and differential mode
  • Low capacitance (12pF line-to-line)
  • Low operating voltages (6V)
  • 钳位电压低
  • Small SLP Package saves board space
  • Solid-state technology

应用

  • T1/E1
  • T3/E3
  • 10/100 以太网
  • Integrated Magnetics
  • Carrier Class Equipment
  • ISDN Interfaces
