概览
TClamp®2512N is specifically designed to provide secondary surge and electrostatic discharge (ESD) protection for Ethernet and telecom interfaces. It integrates low capacitance, surge-rated steering diodes with a high power transient voltage suppressor (TVS) to provide up to 120A (tp=8/20us) of lightning surge protection. Capacitance is limited to 8pF maximum from line-to-line to preserve signal integrity on high-speed lines.
封装

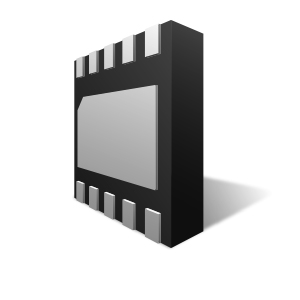

- 2.6 x 2.6 x 0.60mm - Tape and Reel
订购代码
- TClamp2512N.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- Transient Protection to
- Bellcore 1089 (Intra-Building) 120A (8/20μs)
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5 (Lightning) 120A (8/20μs)
- Small SLP package saves board space
- Working Voltage Options: 2.5V and 3.3V
- Low Capacitance: 8pF Maximum (Line-to-Line)
- Low Dynamic Resistance
- Solid-State Silicon-Avalanche Technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| TCLAMP2512N Datasheet | 2019-11-06 | | |
应用
- 10/100/1000 Ethernet
- Integrated magnetics
- Access Equipment
- 局端设备
- Customer Premise Equipment
