概览

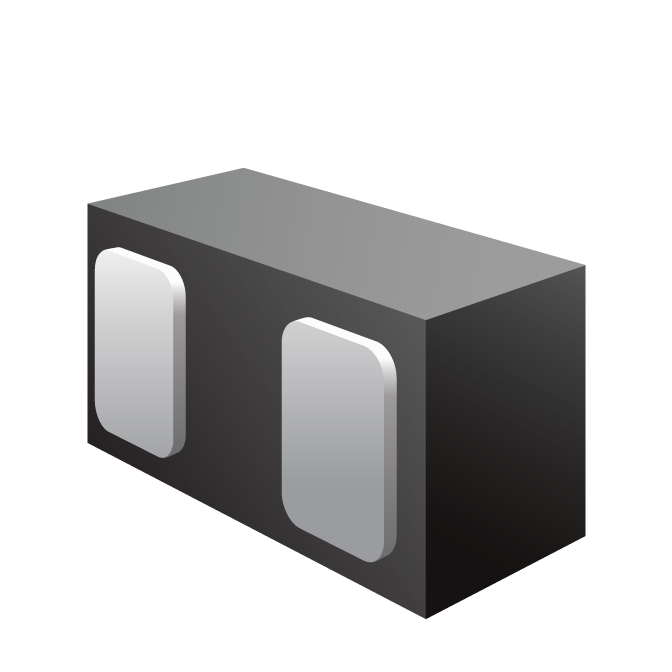

RClamp®01071ZC is an ultra low capacitance “FemtoClamp®” ESD protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating voltage and low clamping voltage.
功能
- ESD 耐受电压
- IEC 61000-4-2 (ESD) ±10kV（接触）
- Low insertion loss: 0.31dB Maximum at 13GHz
- Very small PCB area
- Protects one high-speed data line
- 工作电压：1.0V
- Low reverse leakage current: 100nA max at VR=1.0V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP01071ZC Datasheet | 2024-05-08 | | |
应用
- Thunderbolt 4
- USB Type-C
- USB 3.2 and USB4
