概览
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).

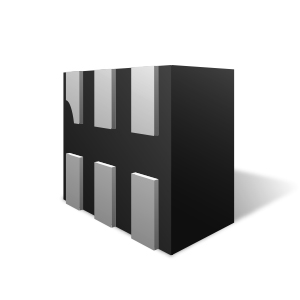

封装
- SLP1210N6
订购代码
- RClamp0582N.TCT- Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±20kV（空气），±12kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two I/O lines and a power line
- Low capacitance: 0.2pF typical
- 钳位电压低
- AEC-Q100 认证产品
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0582N Datasheet | 2018-12-15 | | |
应用
- USB
- MMC Port
- Serial ATA
- Video Port
