概览

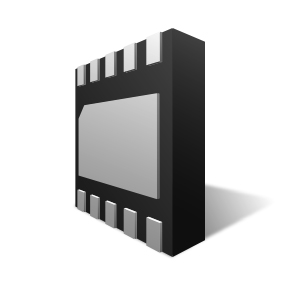

A RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and Lightning.
功能
- 400 瓦峰值脉冲功率 (tp = 8/20 µs)
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
- Protects two line pairs (four lines)
- 接脚全面，可方便电路板布局
- 低电容
- 小漏电流
- Low operating and clamping voltages
- Solid-state EPD TVS process technology
- Lead-free, RoHS and WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP2504N & RClamp3304N Datasheet | 2018-12-15 | | |
应用
- USB 2.0
- 10/100/1000 Ethernet
- 数字视频接口 (DVI)
- T1/E1 Secondary Protection
- T3/E3 Secondary Protection
- 模拟视频
