概览

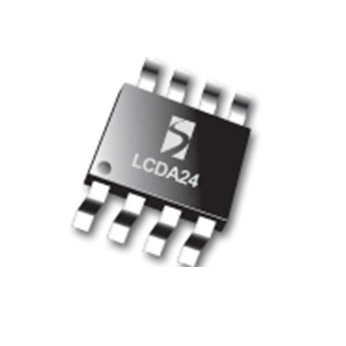

The LCDA series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. Each device will protect two high-speed lines.
功能
- 24 V working voltage
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)
- Protects two I/O lines
- Low capacitance for high-speed data lines
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| LCDA24 Datasheet | 2019-11-06 | | |
| LCDA24 Datasheet | 2019-11-14 | | |
| LCDA24C-1 Datasheet | 2019-06-14 | | |
应用
- 高速数据线
- Microprocessor-based equipment
- Universal serial bus (USB) port protection
- Notebooks, desktops, and servers
- Instrumentation
- LAN/WAN equipment
- 外围设备
