概览

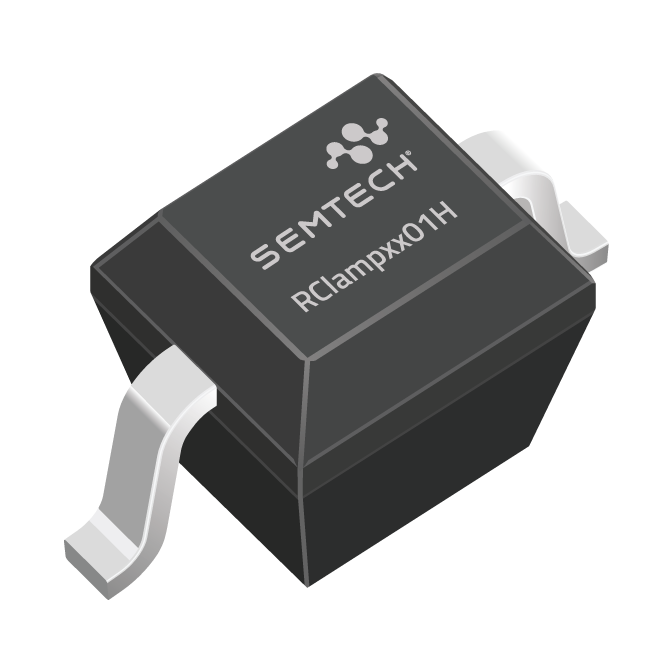

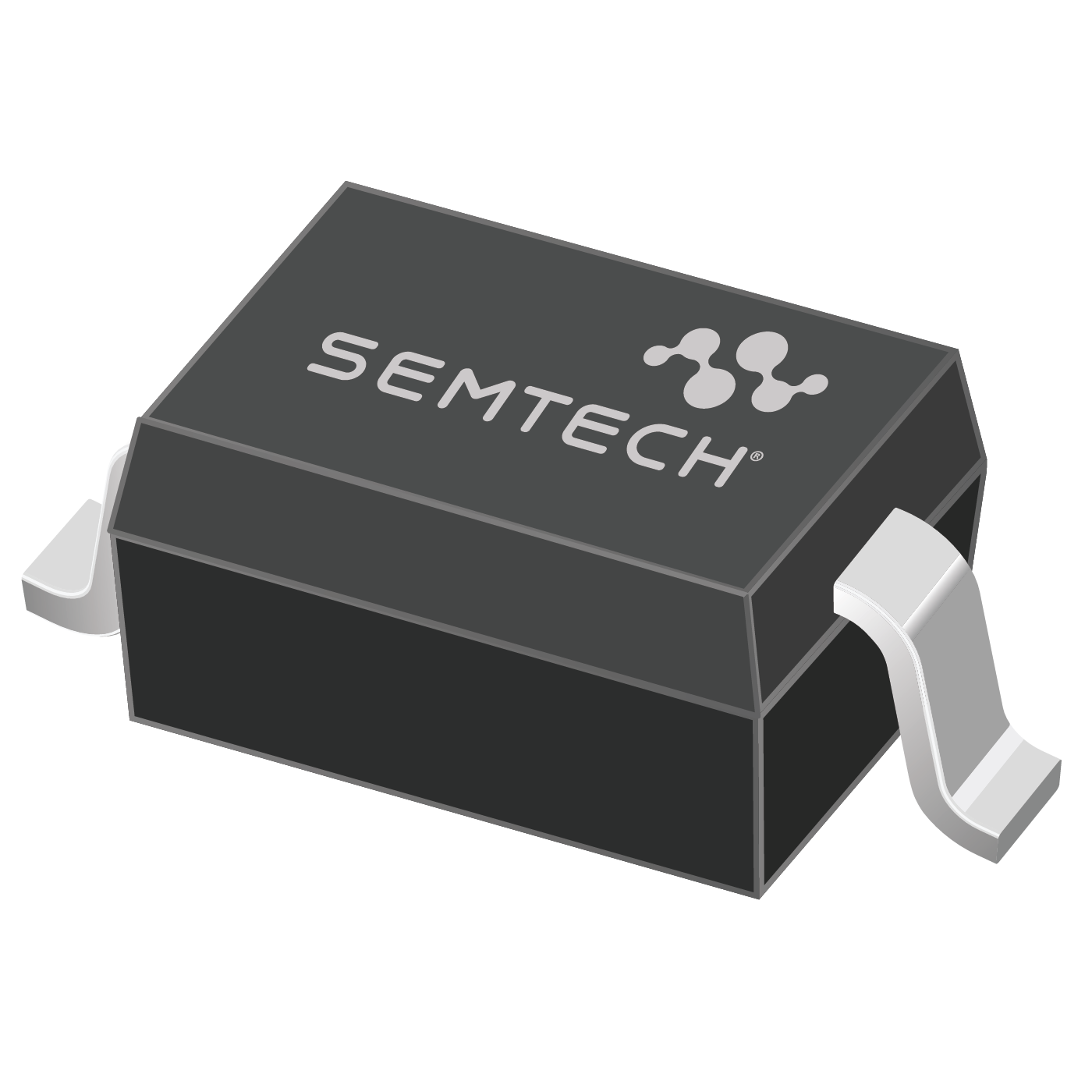

RClamp03301H is a low capacitance ESD protection device specifically designed to protect highspeed Ethernet lines. It offers desirable characteristics for board-level protection, including fast response time, low operating and clamping voltage, and no device degradation. This device features a large cross-sectional area for conducting high surge capability of 30A-36A (tp= 8/20 μs). RClamp03301H is in a 2-pin SOD-323 package; leads are finished with lead-free Matte tin. They may be used to protect 3.3V, 5V and 8V systems. The combination of small size, low capacitance, and high ESD, surge capability makes them ideal for use in industrial and telecom applications.
功能
- High ESD withstand Voltage
- IEC 61000-4-2 (ESD): 30kV (Contact), 30kV (Air)
- IEC 61000-4-5 (Lightning): 30A-36A (tp = 8/20μs)
- Protects one high-speed data line
- 工作电压：3.3V
- Low capacitance: 3.6pF typical
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP03301H Datasheet | 2024-12-14 | | |
应用
- Telecom
- 工业
- 10/100/1000 Ethernet
- DOCSIS modems
- USB 2.0
