概览

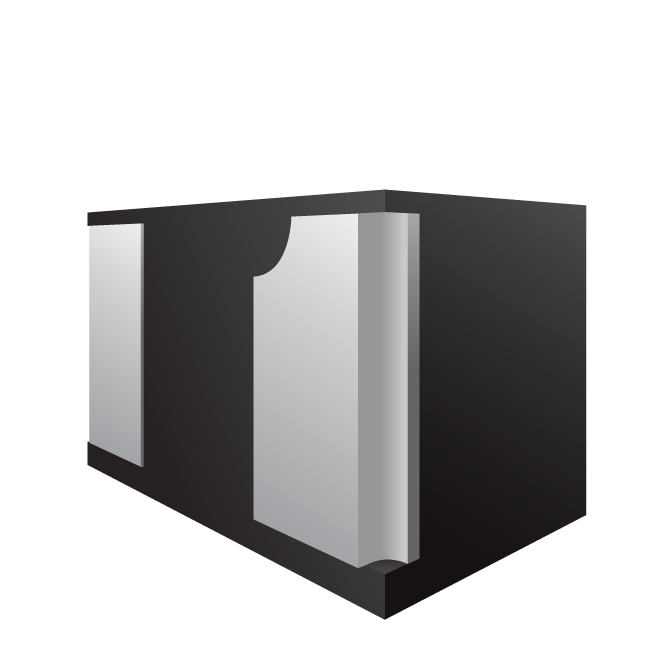

RClamp®03331PWQ is specifically designed to provide secondary surge and electrostatic discharge (ESD) protection on antennas and high-speed data ports. RClamp03331PWQ utilizes snap-back or “crow-bar” technology to minimize device clamping voltage. It features high surge current capability of 10A (tp=8/20μs). ESD characteristics are highlighted by high ESD withstand voltage ±30kV (Air) and ±25kV (Contact) per IEC 61000-4-2. RClamp03331PWQ has extremely low dynamic resistance (0.16Ω). Each device will protect one lines operating up to 3.3V. RClamp03331PWQ is qualified to AEC-Q100 and AEC-Q101, Grade 1 (-40 to +125 °C) for automotive applications.
功能
- ESD 耐受电流高
- IEC 61000-4-2 (ESD): ±30kV (Air), ±25kV (Contact)
- Ultra-small package
- 保护一条线路
- 低 ESD 钳位电压
- Working voltage: ±3.3V
- Low capacitance: 0.35pF Typical
- 小漏电流
- 低动态电阻
- 可焊性侧面封装
- Qualified to AEC-Q100 and AEC-Q101, Grade 1
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP03331PWQ Datasheet | 2024-04-20 | | |
应用
- 天线
- USB 3.2
- LVDS
- 汽车应用
- Industrial equipment
