概览

RClamp®03372ZC is an ultra low capacitance electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. RClamp03372ZC offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.

封装

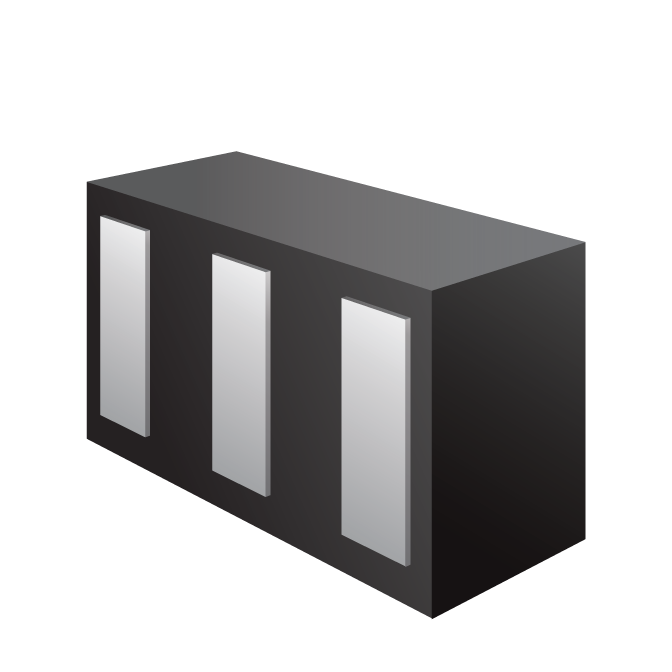

  • DFN 0.62 x 0.32 x 0.25 mm 3-Lead

订购代码

  • RClamp03372ZC.F

PB Free/ROHS

Learn More →

功能

  • ESD and electrical overstress (EOS) protection
  • ESD withstand voltage IEC 61000-4-2 (ESD) ±17kV (air), ±10kV (contact)
  • Ultra-low capacitance: 0.22pF typical
  • Very small PCB area
  • Protects two high-speed data line
  • Working voltage: ±3.3V
  • Low reverse leakage current: 50nA max at VR=±3.3V
  • Low Insertion Loss: 0.9dB (typical) at 10GHz
  • 固态硅雪崩技术

应用

  • USB 3.2 Gen 2
  • HDMI 1.4 and HDMI 2.0
  • USB Type-C
  • Thunderbolt  6G/12GSDI
