概览
RClamp®03392P is a high performance TVS array designed to protect two differential lines from over voltage events caused by ESD, lightning, cable discharge events (CDE), and electrical fast transients (EFT). RClamp03392P features high surge current capability and may be used to protect Ethernet interfaces in MagJacks, communications equipment, security cameras, and industrial equipment.
封装

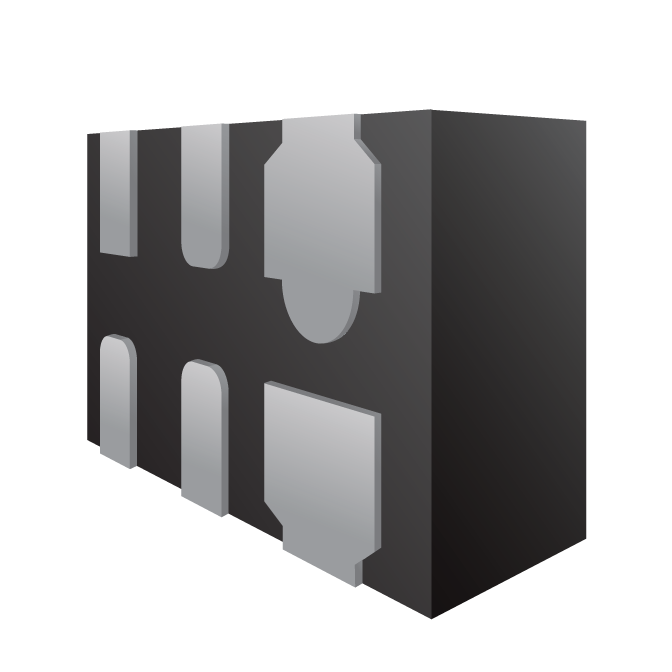

- DFN 1.6 x 1.0 x 0.55mm 6-Lead
订购代码
- RClamp03392P.C: Pb-free, Halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
PB Free/ROHS
Learn More →功能
- 瞬变保护符合以下标准：
- IEC 61000-4-2 (ESD): 20kV (air), 8kV (contact)
- IEC 61000-4-4 (EFT): 4kV (5/50ns) - IEC 61000-4-5 (lightning): 6A (8/20μs)
- Very small PCB area
- Protects two high-speed data lines
- 工作电压：3.3V
- Low capacitance: 0.25pF maximum
- Dynamic resistance: 0.28Ω
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP03392P Datasheet | 2022-11-19 | | |
应用
- 1G/2.5G/5G/10G 以太网
- Integrated magnetics/RJ-45 connectors
- 局端设备
- Industrial equipment
- IP camera
