概览

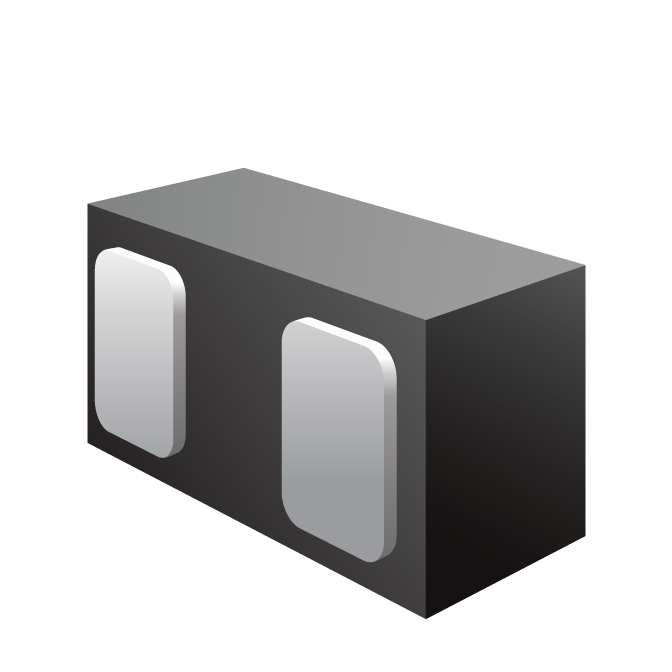

RClamp04051ZA features extremely good ESD protection characteristics highlighted by low typical dynamic resistance of 0.08 Ohms, low peak ESD clamping voltage and high ESD withstand voltage (+/-30kV contact per IEC 61000-4-2). Low maximum capacitance (0.65pF at VR=0V) minimizes loading on sensitive circuits. Each device will protect one high-speed data line operating at 4 Volts. RClamp04051ZA is in a DFN 0.60 x 0.30 x 0.25 mm 2-Lead package. The small package gives the designer the flexibility to protect single lines in applications where arrays are not practical. The combinaƟ on of small size and high ESD surge capability makes them ideal for use in portable applications.
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD): 30kV (Contact) 30kV (Air)
- IEC 61000-4-5 (Lightning): 20A (8/20μs)
- Ultra-small package
- Protects one data line
- 低 ESD 钳位电压
- Working voltage: 4V
- 低电容：最大 0.65pF
- 小漏电流
- Low dynamic resistance: 0.08 Ω typical
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP04051ZA Datasheet | 2024-07-11 | | |
应用
- USB 2.0
- MIPI/MDDI
- MHL
- 可穿戴设备
