概览

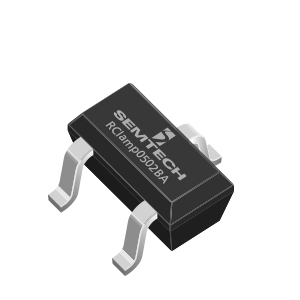

RailClamp® TVS 二极管专为保护连接到高速数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和 EFT（电气快速瞬变）导致的过电压。
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects up to two I/O lines
- Ultra-Low capacitance (<1pF)
- No insertion loss to >3.0GHz
- Low profile (<1mm)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0502BA Datasheet | 2018-12-15 | | |
应用
- Mobile Display Digital Interface (MDDI)
- USB 2.0
- Firewire Ports
- GaAs Photodetector Protection
- HBT Power Amp Protection
- Infiniband Transceiver Protection
- Ph-Free, Halogen Free, RoHS/WEEE Compliant
