概览
The RailClamp® series is a family of ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
封装

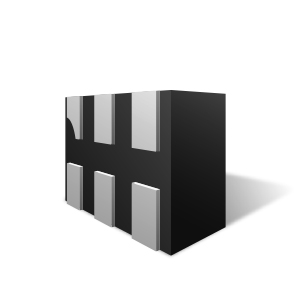

- SLP1510N6
订购代码
- RClamp0503N.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
- RClamp0503N.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
PB Free/ROHS
Learn More →功能
- 为高速数据线路提供 ESD 防护，符合 IEC 61000-4-2 (ESD) 标准的 ±15kV（空气放电）和 ±8kV（接触放电），并符合 IEC 61000-4-4 (EFT) 40 A (5/50 ns) 标准
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects three I/O lines and a power line
- Low capacitance: 0.5pF maximum
- 钳位电压低
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0503N Datasheet | 2018-12-14 | | |
应用
- USB OTG
- MMC Port
- Serial ATA
- Video Port
- SIM Port
- PCI Express
