概览
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The RClamp series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), EFT (electrical fast transients), and lightning.

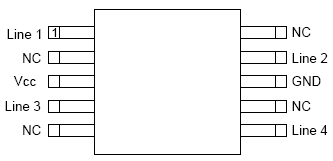

封装

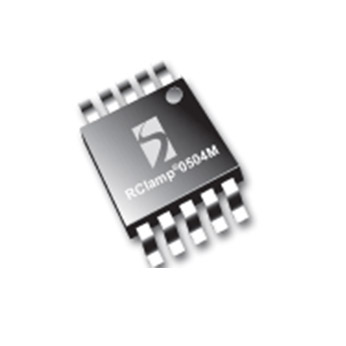

- MSOP-10L
订购代码
- RClamp0504M.TBT: RailClamp® Low-Capacitance TVS Diode Array
PB Free/ROHS
Learn More →功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- 浪涌额定二极管阵列，配备内置 TVS 二极管
- Small package saves board space

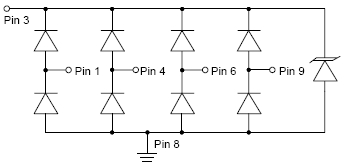

- Protects four I/O lines and one VCC line
- Low capacitance: 3 pF typical
- 钳位电压低
- Low operating voltage: 5.0 V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0504M Datasheet | 2018-12-15 | | |
应用
- Digital video interface (DVI)
- Video graphics cards
- Monitors and flat-panel displays
- Notebook computers
- High-definition multimedia interface (HDMI)
- USB 2.0 power & data line protection
- DVD players
- IEEE 1394 FireWire® ports
- Projection TV
