概览
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The RClamp series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 12A (8/20μs)

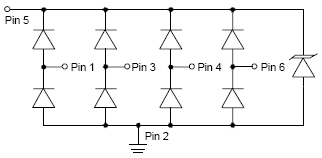

- Array of surge rated diodes with internal TVS Diode

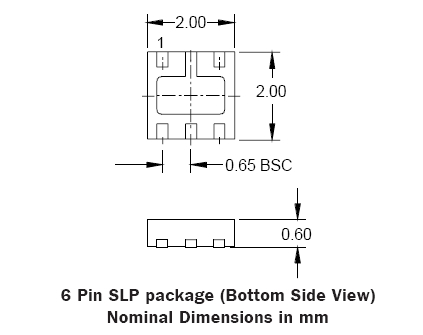

- Small package saves board space
- Protects four I/O lines
- Low capacitance: 3pF typical
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0504N Datasheet | 2018-12-15 | | |
应用
- USB 2.0 Power and Data Line Protection
- 显卡
- Monitors and Flat Panel Displays
- Digital Video Interface (DVI)
- 10/100/1000 Ethernet
- Notebook Computers
