概览
RailClamps are low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
封装
- RClamp0504P.TCT: RoHS and WEEE compliant, 3000 pcs. Tape & Reel
订购代码
- SLP1616P6
PB Free/ROHS
Learn More →功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package (1.6 x 1.6mm) saves board space
- Protects up to four I/O lines & power line
- Low capacitance (<3pF) for high-speed interfaces
- No insertion loss to 2.0GHz
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- 固态硅雪崩技术

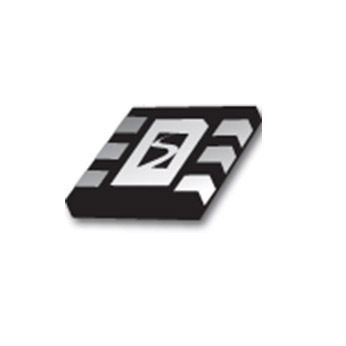

- SLP1616P6 6L package
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0504P Datasheet | 2018-12-14 | | |
应用
- USB 2.0 and USB OTG
- Multi Media Card (MMC) Interfaces
- SD Card Interfaces
- MDDI Ports
- SIM Ports
- Key Pads
- 千兆位以太网
