概览
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The RClamp series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), EFT (electrical fast transients), and lightning.
封装

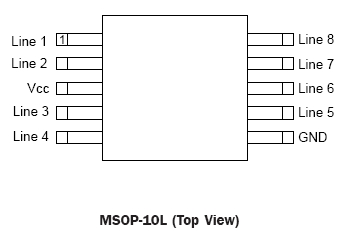

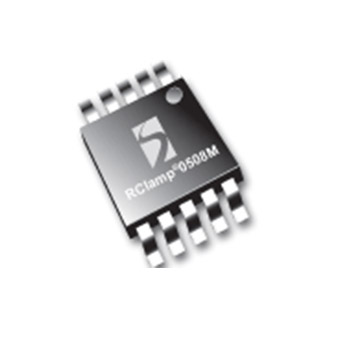

- MSOP-10L
- 98 pcs. Tape & Reel min. bulk
- 500 pcs. Tape & Reel
订购代码
- RClamp0508M.T
- RClamp0508M.TBT
PB Free/ROHS
Learn More →功能
- Protects eight I/O lines operating up to 1 GHz
- Low operating voltage: 5.0 V
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)

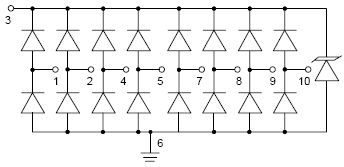

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Low capacitance: 3 pF typical
- 钳位电压低
- 固态硅雪崩技术
- Lead-Free matte tin finish
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0508M Datasheet | 2018-12-14 | | |
应用
- USB 2.0 power & data line protection
- Video graphics cards
- Monitors and flat-panel displays
- Digital video interface (DVI)
- Notebook computers
- High-definition multimedia interface (HDMI)
- 10/100/1000 Ethernet
- ATM interfaces
- IEEE 1394 FireWire® ports
