概览

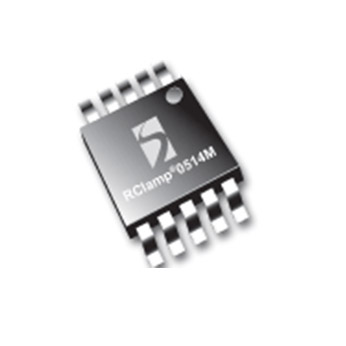

RailClamp 是超低电容 TVS 阵列，旨在保护高速数据接口。此系列专为保护连接到高速数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和 EFT（电气快速瞬变）导致的浪涌。
功能
- ESD protection for high-speed data lines to:
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

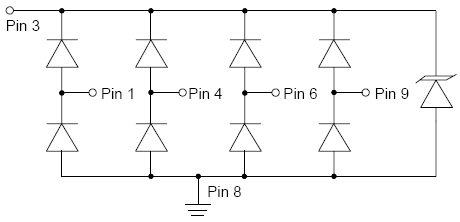

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space

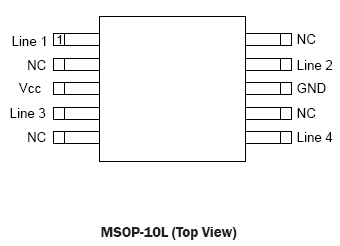

- Protects four I/O lines and one Vcc line
- Low capacitance: 0.7pF typical (Line-to-Line)
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0514M Datasheet | 2018-12-14 | | |
应用
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- 10/100/1000 Ethernet
- Monitors and Flat Panel Displays
- Notebook Computers
- Set Top Box
- Projection TV
