概览
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
功能
- 高 ESD 耐受电压：+/-17kV（接触）和
- +/25 kV（空气放电）
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4

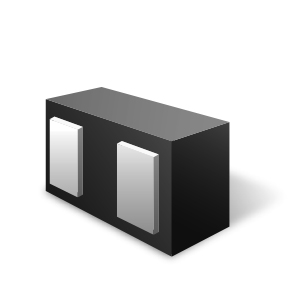

- Ultra-small 0201 package
- Protects one high-speed data line
- Low reverse current: <10nA typical (VR=5V)
- 工作电压：+/- 5V
- 低电容：0.35pF（典型值）
- 动态电阻：0.90 欧姆（典型值）
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0521Z 数据表 | 2019-06-14 | | |
应用
- HDMI 1.3 and HDMI 1.4
- USB 2.0
- MHL
- LVDS 接口，调频天线
- PCI Express
- eSATA 接口
