概览
RailClamp 是超低电容 TVS 阵列，旨在保护高速数据接口。此系列专为保护连接到高速数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和 EFT（电气快速瞬变）导致的浪涌。
功能
- 为高速数据线路提供 ESD 防护，符合 IEC 61000-4-2 (ESD) 标准的 ±15kV（空气放电）和 ±8kV（接触放电），并符合 IEC 61000-4-5（雷电）5 A (8/20μs) 和 IEC 61000-4-4 (EFT) 40 A (5/50 ns) 标准

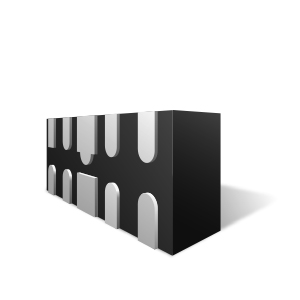

- Package design optimized for high speed lines
- Flow-Through design

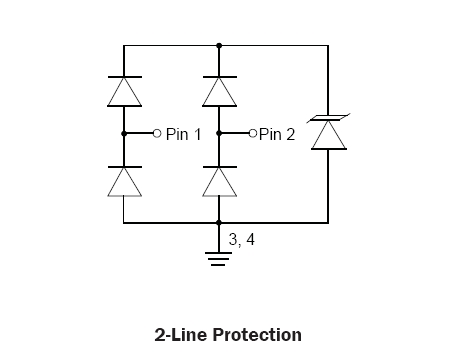

- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- 固态硅雪崩技术
- Lead-Free, RoHS and WEEE Compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0522P Datasheet | 2019-05-25 | | |
| RCLAMP0522P Datasheet | 2019-02-07 | | |
应用
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- Unified Display Interface (UDI)
- DisplayPort™ Interface
- MDDI Ports
- PCI Express
- eSATA 接口
