概览

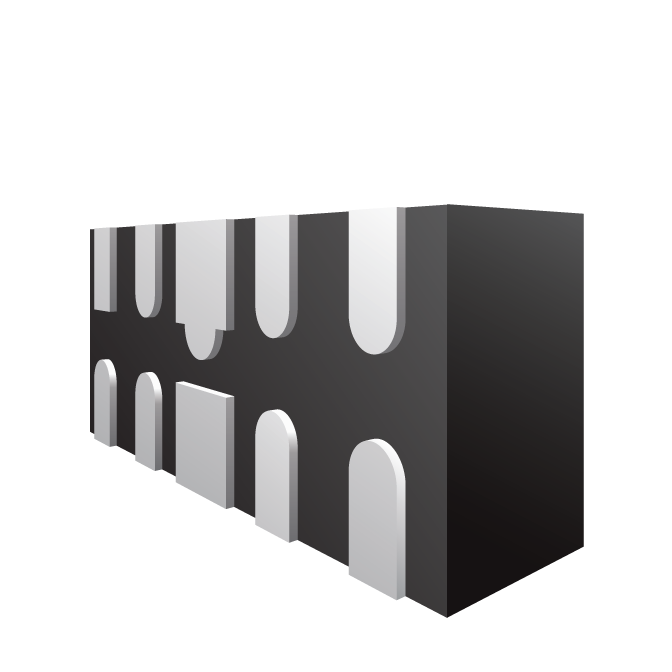

RailClamp transient voltage suppressor (TVS) arrays are ultra-low capacitance electrostatic discharge (ESD) protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD, cable discharge events (CDE) and electrical fast transients (EFT). RClamp®0524PB has a typical capacitance of only 0.3pF between I/O pins and has ESD characteristics that are highlighted by high ESD withstand voltage (+/-12kV per IEC1000-4-2). Each device will protect four lines operating at 5V.
功能
- Transient protection to
- IEC 61000-4-2 (ESD): ±12kV (contact), ±17kV (air)
- IEC 61000-4-5 (lighting): 7A (8/20μS)
- IEC 61000-4-4 (EFT): 40A (5/50nS)
- Working voltage: 5V
- Protects four high speed data lines
- Low capacitance: 0.3pF (Typ)
- Excellent TDR performance for HDMI 1.4
- 低 ESD 钳位电压
- Package design optimized for high speed lines
- 固态硅雪崩技术
