概览
RClamp® 0532T 是一款高性能 TVS 阵列，旨在保护两条差分线路免受由 ESD、雷电、CDE（电缆放电事件）和 EFT（电快速瞬变）引起的过电压事件影响。RClamp0532T 具有高浪涌电流能力，可用于保护 MagJacks、通信设备、安全摄像头和工业器件中的以太网接口。
RClamp0532T 将低电容、浪涌额定转向二极管与大功率瞬态电压抑制器 (TVS) 集成在一起。TVS 采用折回技术将器件钳位电压降至最低，并具有 10A (tp=8/20us) 的高浪涌电流能力。其突出的 ESD 特性是 ESD 耐压高（根据 IEC 61000-4-2 为 +/-30kV）和极低的动态电阻（典型值为 0.020 欧姆）。每个器件将保护两条以 5 伏特运行的线路。

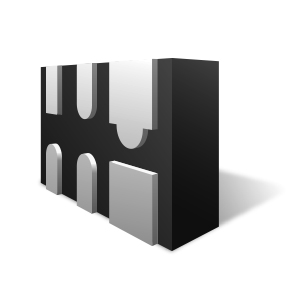

封装
- SLP1610P4T；1.6 x 1.0 x 0.40 毫米；卷带包装 - 数量：3000
订购代码
- RClamp0532T.TCT - 无铅、无卤素且符合 RoHS/WEEE 标准
PB Free/ROHS
Learn More →功能
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5（雷电）10A (8/20μs)
- 占用较小 PCB 空间
- 保护两条高速数据线路
- 工作电压：5V
- 低电容：0.60pF（典型值）
- 动态电阻：0.020 欧姆（典型值）
- Solid-State Silicon-Avalanche Technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0532T 数据表 | 2018-12-15 | | |
应用
- 1G/2.5G/5G/10G 以太网
- 集成磁性元件/RJ-45 连接器
- 局端设备
- Industrial Equipment
- IP 摄像头
