概览
RailClamps are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

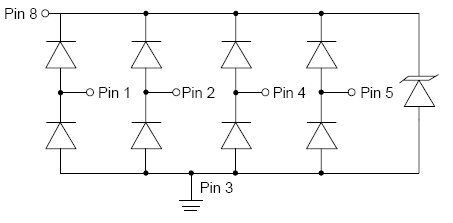

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space

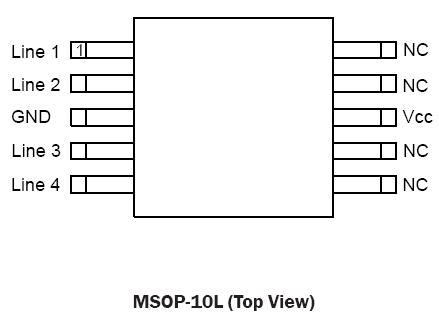

- Protects four I/O lines and one Vcc line
- Low capacitance: 0.3pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- Lead-free matte tin finish
| 文档 | Release Date | Type |  |
|---|---|---|---|

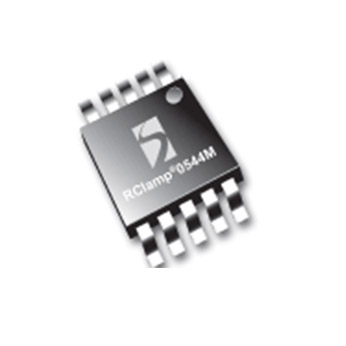

| RCLAMP0544M Datasheet | 2018-12-14 | | |
应用
- 高清多媒体接口 (HDMI)
- 数字视频接口 (DVI)
- 10/100/1000 Ethernet
- Monitors and Flat Panel Displays
- Notebook Computers
- Set Top Box
- Projection TV
