概览

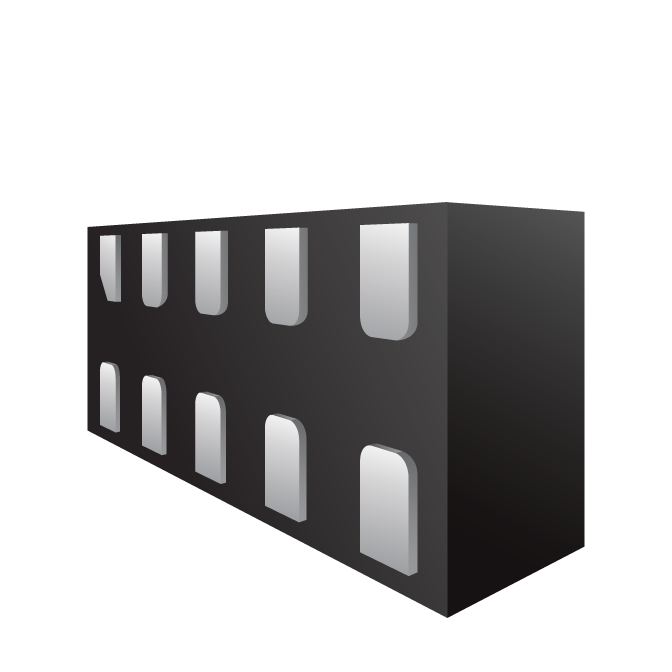

RClamp0544P RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data lines from over-voltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- Transient Protection to IEC 61000-4-2 (ESD): ±20 kV (Air), ±8kV (Contact) IEC 61000-4-4 (EFT): 40A (5/50ns) IEC 61000-4-5 (Lightning): 6.5A (8/20μs)
- 保护四条高速数据线路
- Package design optimized for high speed lines
- Working voltage: 5V
- 钳位电压低
- Low maximum capacitance: 0.22pF
- Solid-State Silicon-Avalanche Technology
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0544P Datasheet | 2023-05-24 | | |
应用
- HDMI 2.1/2.0
- USB 3.2 Gen 1/ Gen 2
- USB Type-C • DisplayPort
- LVDS Interfaces
