概览
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from over voltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).

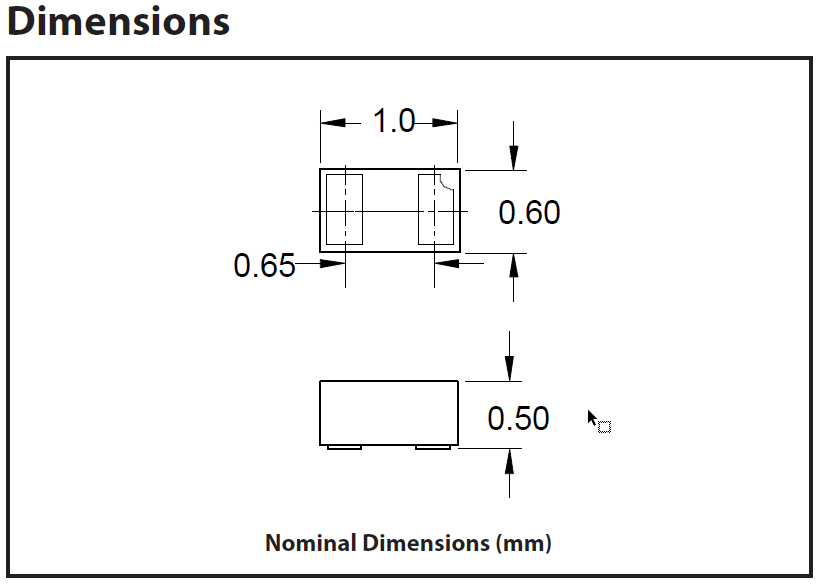

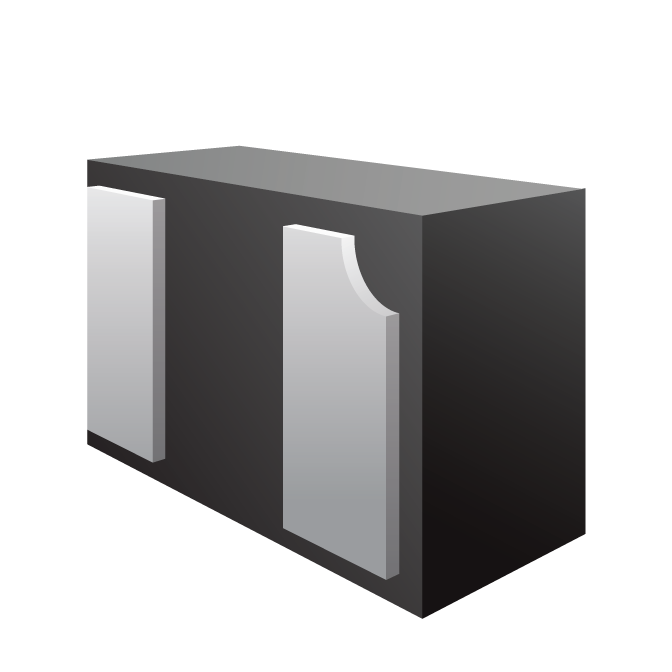

RClamp®0551PQ 的最大电容仅为 0.50pF。因此它可用于工作频率超过 5GHz 的电路，而不会出现明显的信号衰减。它们超过了 IEC 61000-4-2 4 级的 ESD 抗扰性要求。RClamp0551PQ 采用 2 引脚 SLP1006P2 封装，符合 AEC-Q100 1 级（-40 至 +125 oC）汽车应用的要求。它的尺寸为 1.0 x 0.6 毫米，标称高度仅为 0.5 毫米。每个器件保护一条以 5 伏特电压运行的高速线路。因此设计人员得以在不能使用阵列的应用中灵活地保护单线。
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准，+/- 25kV（接触和空气）
- Protects one data line
- 低电容：最大 0.50pF
- 动态电阻：0.84 欧姆（典型值）
- 工作电压：5V
- Qualified to AEC-Q100, Grade 1
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RClamp0551PQ 数据表 | 2019-07-08 | | |
应用
- 汽车应用
- Industrial Equipment
- USB 3.0
- HDMI
- GPS 天线
- 调频天线
