概览
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. They are designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
封装

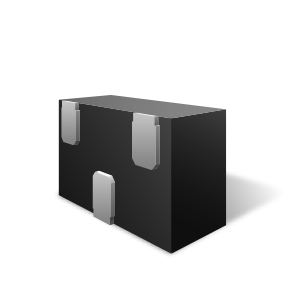

- SLP1006N3T 1.0 x 0.6 x 0.40 mm package
订购代码
- RClamp0552T.TNT: Pb-Free, Halogen Free and RoHS/WEEE Compliant, 10,000 pieces tape and reel
PB Free/ROHS
Learn More →功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准的 +/-17kV（接触和空气）
- Very small PCB area: 0.6mm2
- Protects up to two high-speed data lines
- Low reverse current: <5nA typical (VR=5V)
- 工作电压：+/- 5V
- Low capacitance: <0.4pF (VR=0V)
- Low dynamic resistance: 0.90 Ohms (Typ)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0552T Datasheet | 2023-03-27 | | |
应用
- HDMI 1.3 and HDMI 1.4
- USB 3.0
- MHL
- eDP
- LVDS Interfaces
- eSATA 接口
Inventory
| Product | 国家/地区 | 经销商 | Qty | Buy |
|---|
