概览
RClamp®0561PQ is an ultra low capacitance ESD protection device specifically designed to protect highspeed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
RClamp0561PQ 具有极为出色的 ESD 防护特性，其特点是低峰值 ESD 钳位电压和高 ESD 耐受电压（根据 IEC 61000-4-2 为 +/-15kV 接触）。RClamp0561PQ 的典型电容为 0.14pF，可用于高带宽应用，例如 HDMI 2.0 4K/2K、Thunderbolt 和 USB 3.1。每个器件将保护一条
以高达 5.5 伏特电压运行的高速数据线。

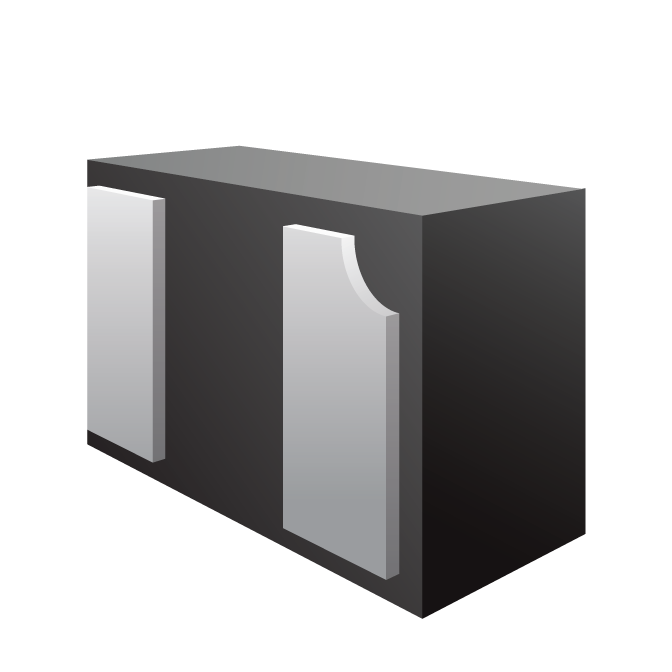

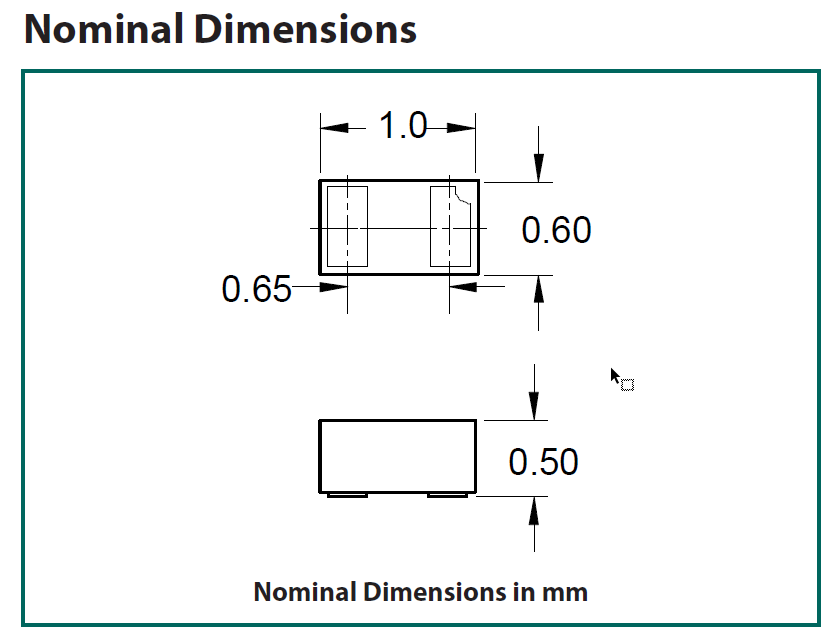

RClamp0561PQ 采用 2 引脚 SLP1006P2 封装，尺寸为 1.0 x 0.6 mm，标称高度为 0.50mm。引脚镀层为镍钯金。小型封装为设计人员提供了在阵列不实用的应用中保护单线的灵活性。
功能
- ESD 耐受电流高
- ŒŒIEC 61000-4-2 (ESD) 18kV（空气），15kV（接触）
- 低电容：0.14pF（典型值）
- 经 AEC-Q100 认证
- Very small PCB area
- 保护一条高速线路
- 工作电压：5.5V
- 典型动态电阻：1.2 欧姆
- 运行带宽大：16GHz
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RClamp0561PQ 数据表 | 2022-04-07 | | |
应用
- HDMI 1.4 and HDMI 2.0
- USB 3.0 和 USB 3.1
- 汽车信息娱乐系统
- USB Type-C
