概览
RailClamp® TVS 二极管专为保护连接到高速数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和 EFT（电气快速瞬变）导致的过电压。

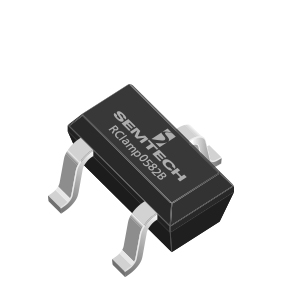

封装
- SOT-523
订购代码
- RClamp0582B.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects up to two I/O lines
- 低电容 (< 0.8 pF)
- 高浪涌能力：15A (tp=8/20us)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0582B Datasheet | 2018-12-15 | | |
应用
- USB 2.0
- Set Top Box
- mp3 Players
- Notebook Computers
- Networking Equipment
Inventory
| Product | 国家/地区 | 经销商 | Qty | Buy |
|---|
