概览
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
封装

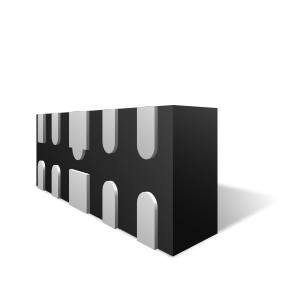

- SLP2710P8 10-pin
订购代码
- RClamp0584J.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects four I/O lines
- Low capacitance: 0.25pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0584J Datasheet | 2018-12-15 | | |
应用
- HDMI 1.3 and HDMI 1.4
- USB 3.0
- 数字视频接口 (DVI)
- DisplayPortTM Interface
- LVDS Interfaces
- PCI Express
- eSATA 接口
