概览
RailClamp® TVS arrays are ultra-low capacitance electrostatic discharge (ESD) protection devices designed to protect high-speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD, cable discharge events (CDE), and electrical fast transients (EFT).
封装

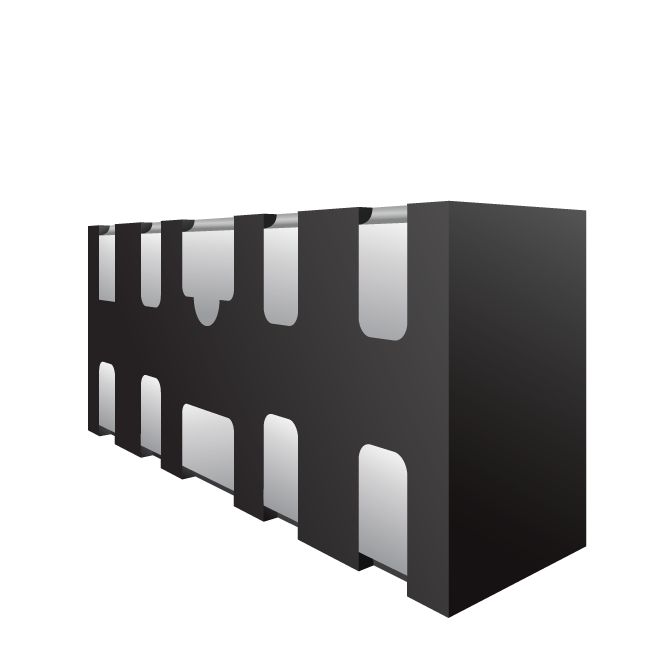

- DFN 2.5 x 1.0 x 0.55mm-10 Lead
订购代码
- RClamp0594PWQ.C: Pb-free, Halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
PB Free/ROHS
Learn More →功能
- 瞬变保护符合以下标准：
- IEC 61000-4-2 (ESD) ±20 kV (air), ±17kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns) - IEC 61000-4-5 (lightning) 5A (8/20μs)
- ISO-10605:2023 (ESD) 30kV (air), 25kV (contact)
- Qualified to AEC-Q100 (Grade 1) and AEC-Q101
- Side-wettable flanks
- 保护四条高速数据线路
- Package design optimized for high speed lines
- Working voltage: 5V
- 钳位电压低
- Low capacitance: 0.8pF maximum (I/O to GND)
- 固态硅雪崩技术
应用
- 汽车应用
- 高清多媒体接口 (HDMI)
- Embedded display port (eDP)
- Display Pport
- LVDS
- V-By-One
