概览

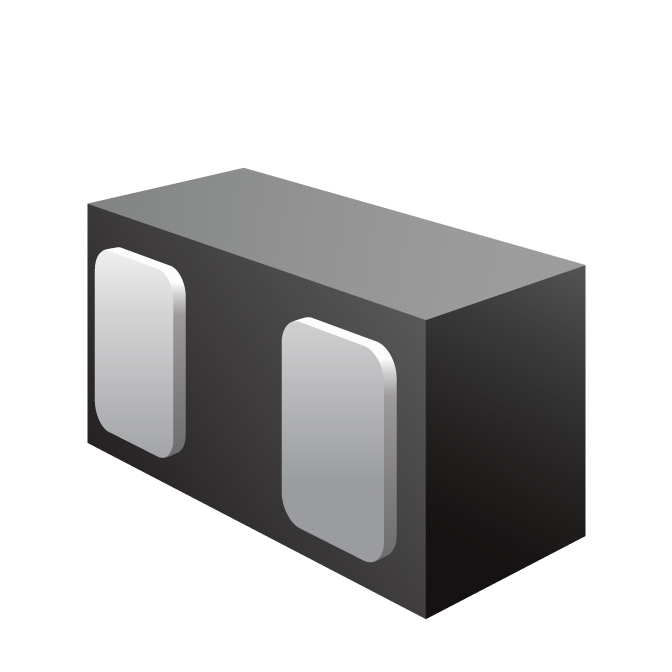

RClamp0821ZA TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers and other portable electronics. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
功能
- High ESD withstand Voltage: +/-12kV (Contact) and +/- 17kV (Air) per IEC 61000-4-2
- Ultra-small package
- Protects one data line
- 低 ESD 钳位电压
- 工作电压：8V
- Low capacitance: 0.50pF maximum
- 小漏电流
- Extremely low dynamic resistance: 0.90 Ohms (Typ)
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP0821ZA Datasheet | 2024-07-04 | | |
应用
- 触摸屏控制器
- 蜂窝手机
- Tablets
- Displays
- 调频天线
Inventory
| Product | 国家/地区 | 经销商 | Qty | Buy |
|---|
