概览
RClamp®1561PQ 是一种低电容 ESD 防护设备，专为保护高功率射频接口而设计。它具备电路板保护的理想特性，包括响应时间快，工作电压和钳位电压低，无设备退化。
RClamp1561PQ 是双向 ESD 保护器件，具有 15V 的工作电压、高 ESD 耐受电压（根据 IEC 61000-4-2 标准 +/-10kV 接触）和低典型电容（VR=15V 时 0.25pF）。RClamp1561PQ 专用于最大限度地减少射频电路中的谐波失真，包括高 GSM 频段和低 GSM 频段。因此它非常适用于移动和汽车应用中常见的射频、FM、GSM 和其他天线电路。

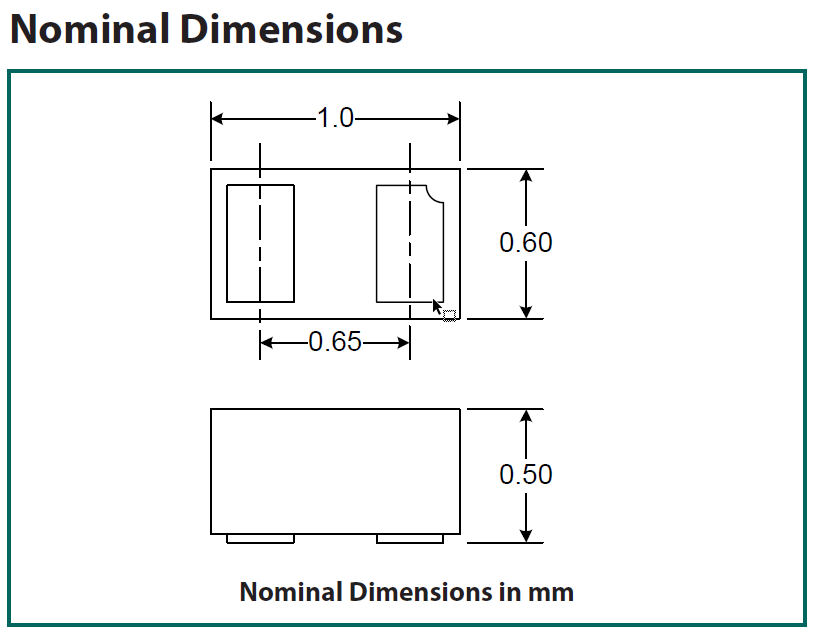

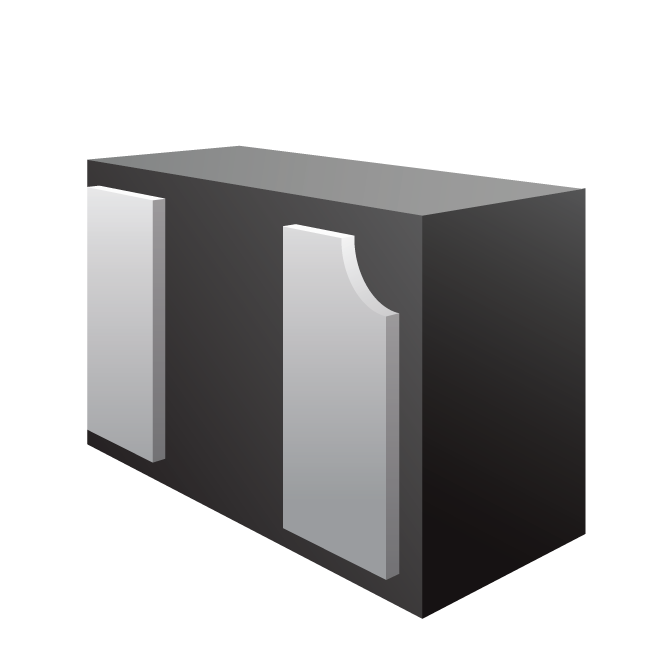

RClamp1561PQ 采用 2 引脚 SLP1006P2 封装，尺寸为 1.0 x 0.6 mm，标称高度仅为 0.50mm。引脚镀层为镍钯金。本器件符合 AEC-Q100 标准。
功能
- ESD 耐受电流高
- IEC 61000-4-2 (ESD) 15kV（空气），10kV（接触）
- 低电容：0.25pF（典型值）
- Qualified to AEC-Q100, Grade 1
- 保护一条高速线路
- 工作电压：±15V
- 反向泄漏电流小
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RClamp1561PQ 数据表 | 2019-07-08 | | |
应用
- 射频天线
- GPS 天线
- 调频天线
- 蓝牙电路
- 自动读表
- Industrial Equipment
Inventory
| Product | 国家/地区 | 经销商 | Qty | Buy |
|---|
资源
Semtech 保护产品
Semtech Automotive Protection Solutions…
USB Type-C 的 ESD 防护
HDMI 2.0 的 ESD 防护
Semtech Shield Protection - 产品概览
介绍 Semtech 的 SurgeSwitch 器件
