RClamp2451P
RailClamp® TVS diodes are ultra low capacitance devices designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD), electrical fast transients (EFT) and electrical overstress (EOS). They are designed for use on high speed ports in applications such as cell phones, notebook computers and other portable electronics. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
功能
- High ESD withstand voltage: +/-10kV (contact) and +/-18kV (air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
- 保护一条高速数据线路
- 低 ESD 钳位电压
- 工作电压：+/- 24V
- Low capacitance: 0.38pF Typical
- 小漏电流
- Low dynamic resistance: 0.19Ω
- 固态硅雪崩技术
- LoRa transceivers
- 近场通信 (NFC) 线
- 射频信号线
- FM antenna
应用

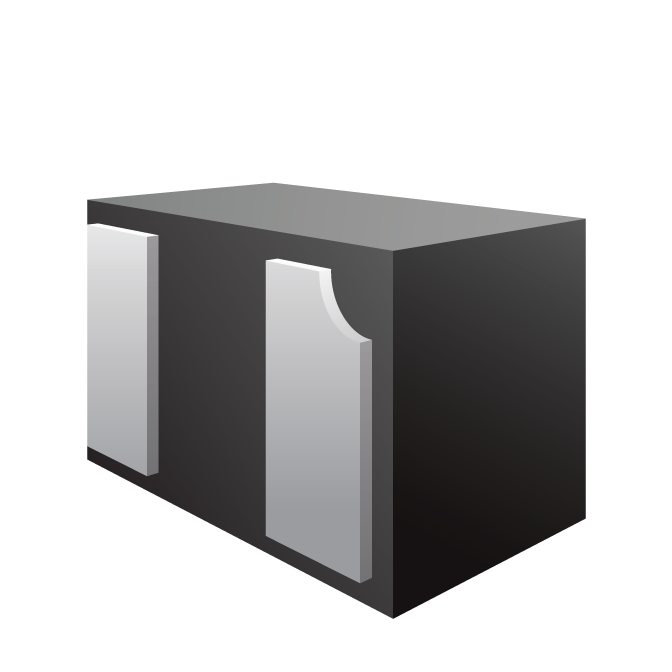

封装
- DFN 1.0 x 0.6 x 0.55mm 2-Lead
订购代码
- RClamp2451P.TNT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2451P
产品描述
RCLAMP 1-LINE, 24V ESD PROTECTION
引脚数
2
封装类型
DFN
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
